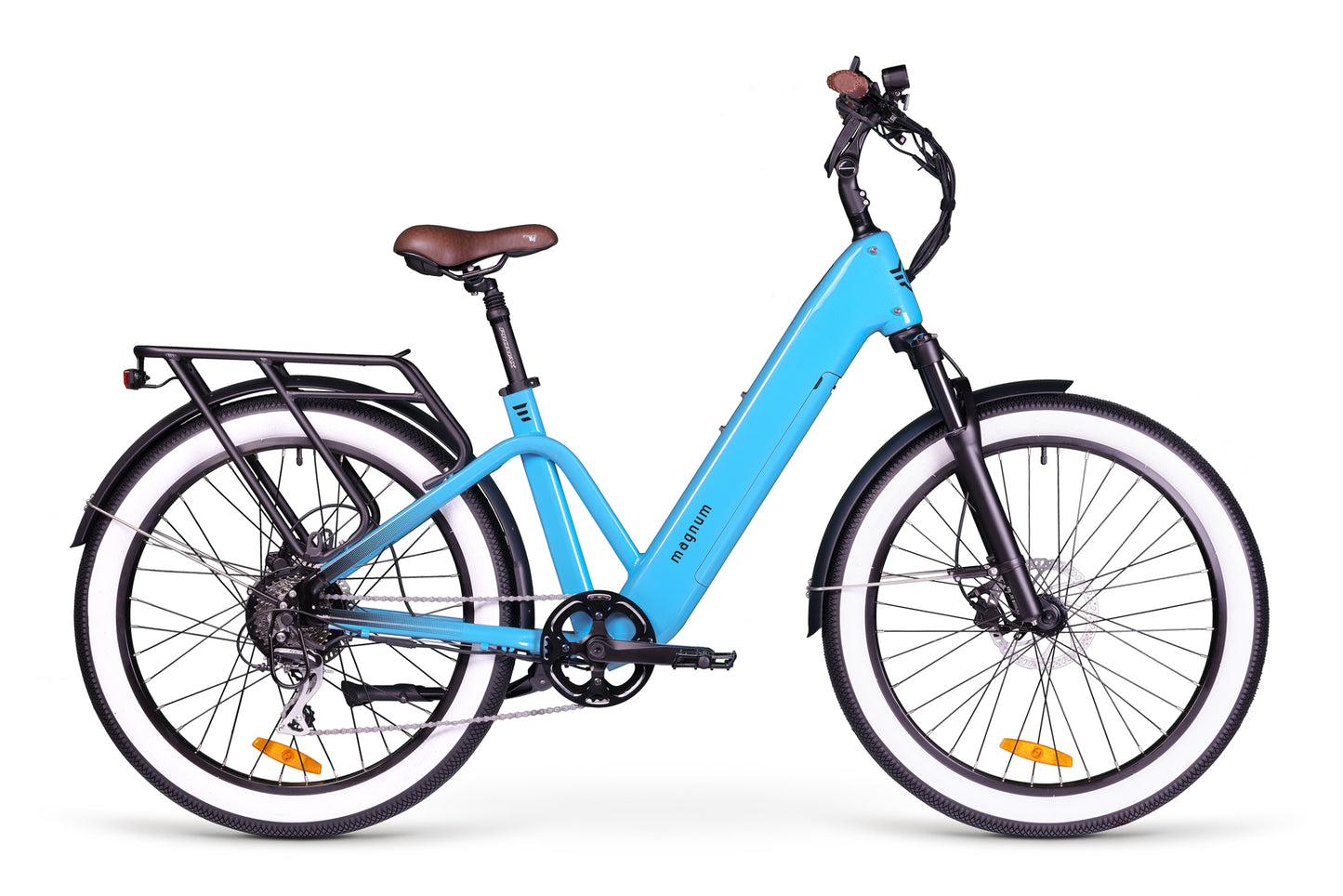

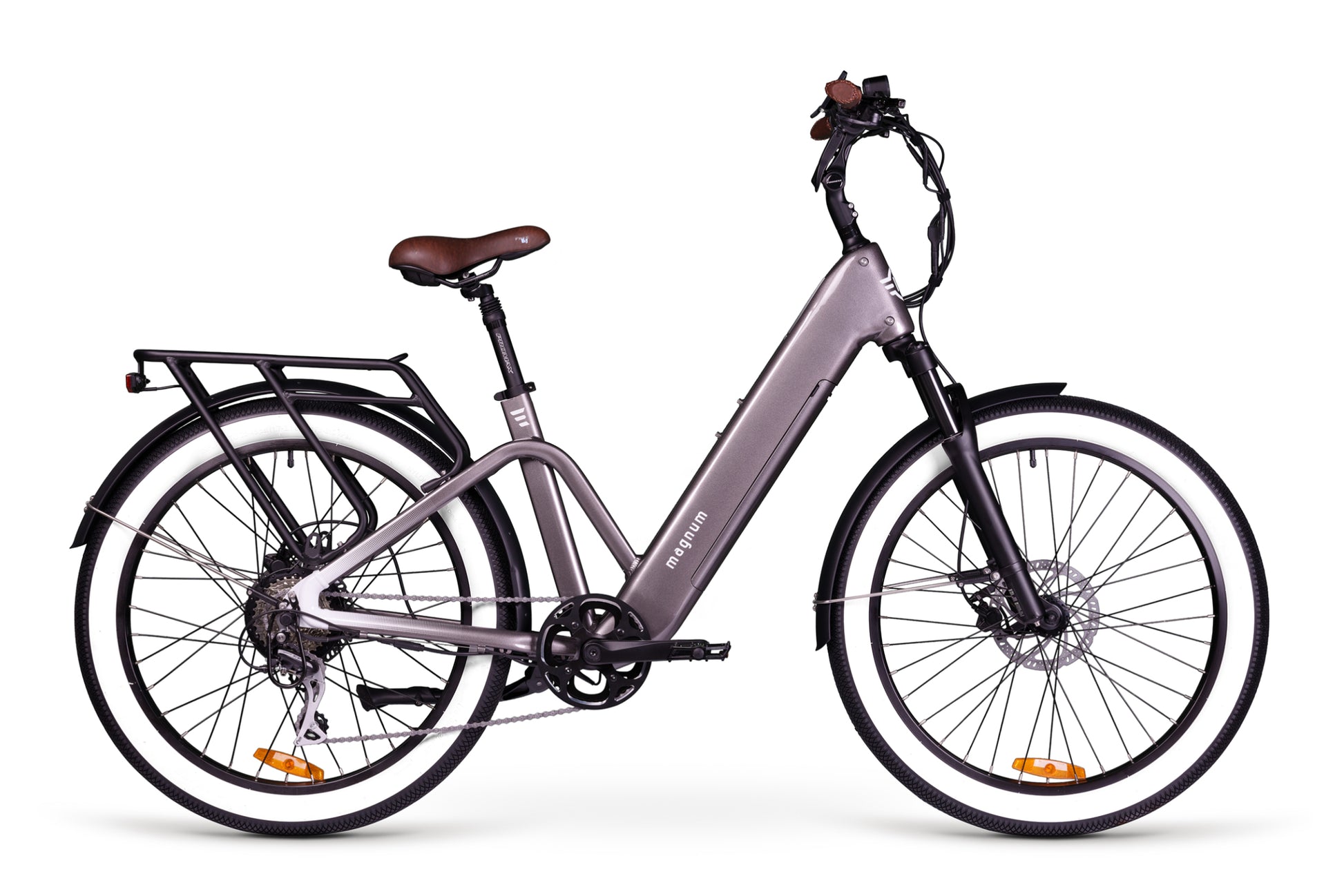

Magnum Pilot Hub 48v 15Ah

Power, comfort, and everyday utility in one feature-packed e-bike. Designed for commuting, cruising, and weekend adventures, it delivers smooth torque, confident control, and real-world range without the bulk.

Highlights

• Power & Range: 500W Bafang rear hub motor + 48V 15Ah (720Wh) battery for 25–50 miles per charge; typical charge time ~7.5 hours.
• Ride Your Way: Torque-sensing pedal assist up to 28 mph, or throttle-only up to 20 mph.
• Comfort: Suspension fork with lockout, suspension seat post, wide 26" × 3.0" tires, and Promax tool-free adjustable stem.
• Control & Safety: Shimano 8-speed (11–32t), Tektro hydraulic disc brakes, and a backlit Magnum VeloFox LCD.
• Everyday-Ready: Rear carrier rack, front/rear fenders, integrated lights, and a max load of 350 lbs.

Quick Specs

Motor

Bafang rear hub-drive, 500W

Battery

48V, 15Ah, 720Wh (removable)

Charge Time

Approx. 7.5 hours

Estimated Range

25–50 miles per charge

Drive Mode

Torque-sensing pedal assist; throttle available

Top Speed

Up to 28 mph (assist); 20 mph (throttle-only)

Display

Magnum VeloFox, backlit monochrome LCD

Stem/Handlebars

Promax tool-free adjustable stem

Tires/Wheels

26" × 3.0"

Weight

Total 65 lbs; battery 11 lbs

Max Load

350 lbs

Fork

Suspension with lockout

Gearing

Shimano 8-speed (11–32t)

Brakes

Tektro hydraulic disc brakes

Saddle Suspension

Suspension seat post

Rack/Fenders

Rear carrier rack; front & rear fenders

Lights

Integrated front & rear lights
