Magnum Bikes

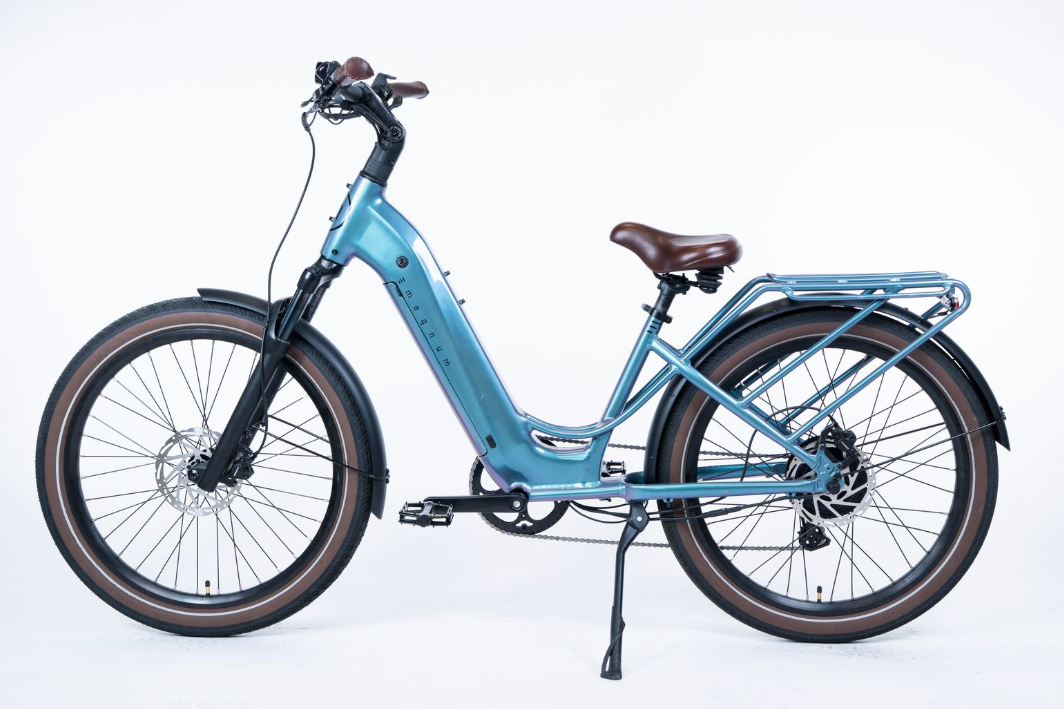

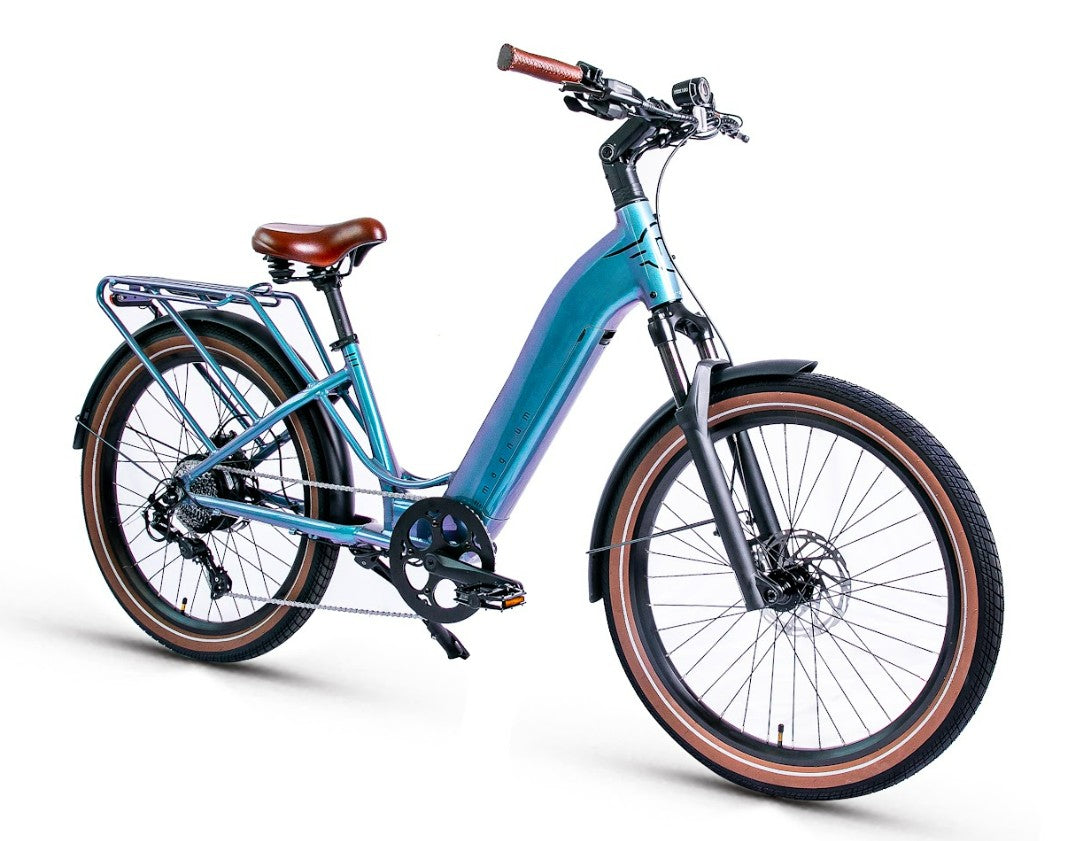

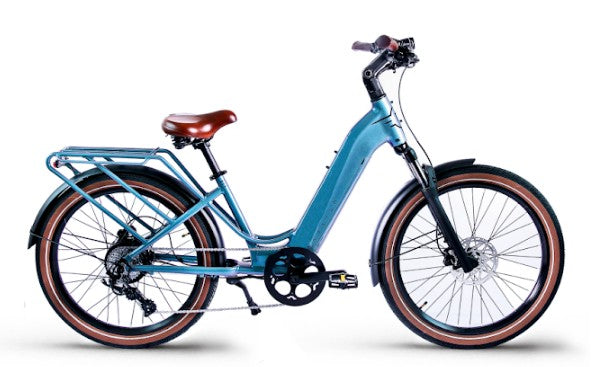

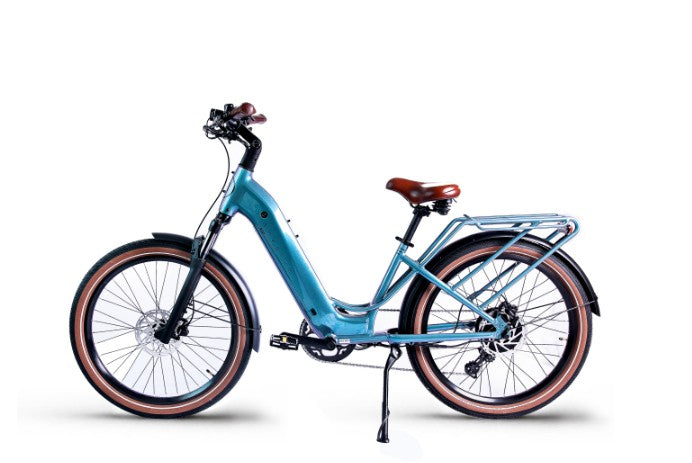

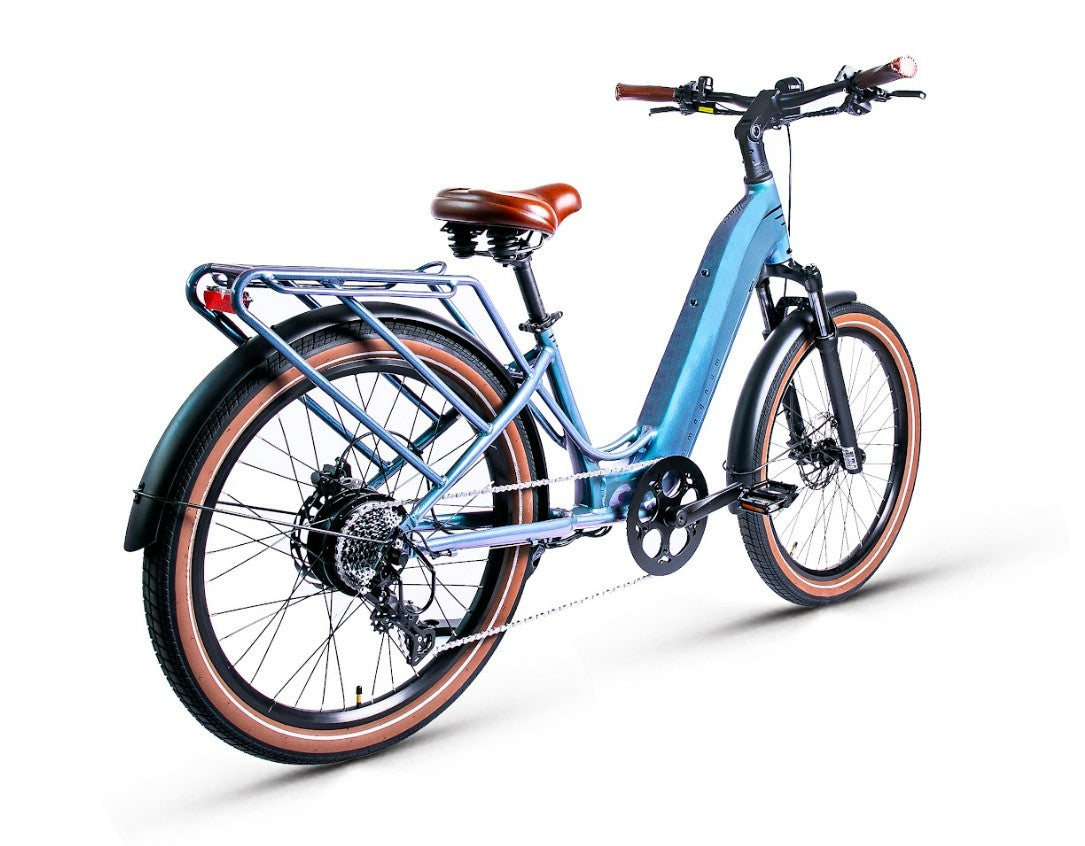

Magnum Wave 48V 15A

$1,799.99 USD

Sale Sold out

Color: Ocean

Bafang 500W 48V 13Ah 720Wh Assist up to 25 mph Throttle up to 20 mph Hydraulic discs

Power comfort and everyday utility in one feature packed electric bike. Designed for commuting cruising and weekend adventures it delivers smooth torque confident control and real world range.

Highlights

Power and range: Bafang geared rear hub drive 500W paired with a matching color 48V 13Ah 720Wh Li NCM battery for an estimated 30 to 50 miles per charge. Typical charge time is about 7.5 hours.
Ride your way: Torque sensing pedal assist up to 25 mph or use the trigger throttle up to 20 mph. Can be configured to class 1 2 or 3 electric bike.
Comfort: Suntour XCM 32 fork with lockout and preload adjustment plus an adjustable stem and 26 inch by 2.35 inch Kenda K1164 tires for a stable ride.
Control and safety: SHIMANO TZ500 seven speed with a 14 to 28T freewheel and Tektro hydraulic disc brakes with 180 mm rotors.
Everyday ready: Rear carrier rack front and rear fenders and integrated front and rear lights. Total weight about 65 lbs with a 9 lb battery.

Quick Specs

Motor: Bafang geared rear hub drive 500W
Battery: Matching color 48V 13Ah 720Wh Li NCM
Charge Time: About 7.5 hours
Estimated Range: 30 to 50 miles per charge
Drive Mode: Torque sensing pedal assist and trigger throttle
Top Speed: Assist up to 25 mph and throttle up to 20 mph
Class Configuration: Can be configured to class 1 2 or 3 electric bike
Display: Magnum monochrome back lit LCD fixed mount

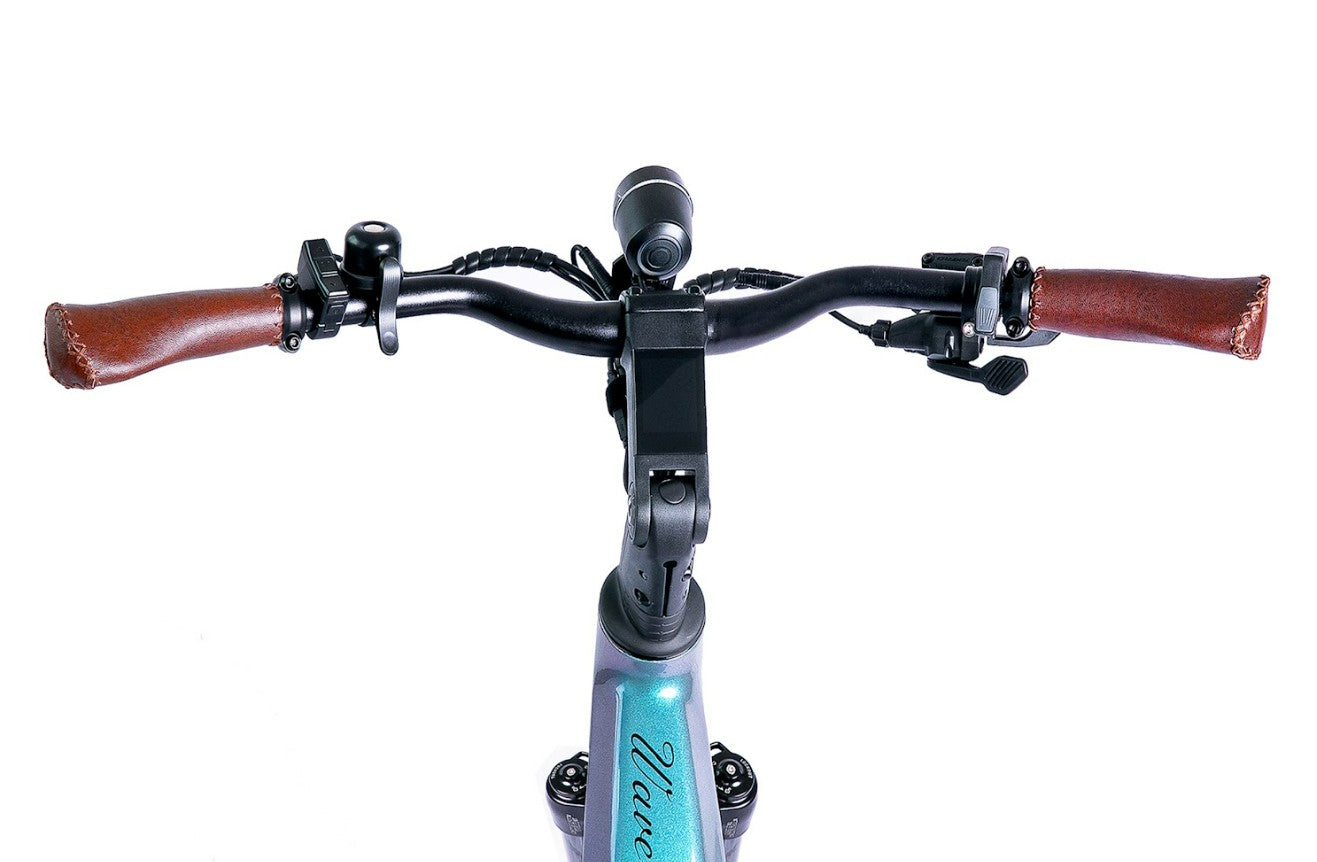

Stem and Handlebars: Adjustable
Tires and Wheels: Kenda K1164 26 inch by 2.35 inch
Weight: Total 65 lbs battery 9 lbs
Max Load: 265 lbs
Fork: Suntour XCM 32 with lockout and preload adjustment
Gearing: SHIMANO TZ500 seven speed 14 to 28T
Brakes: Tektro hydraulic disc with 180 mm rotors
Rack and Fenders: Rear carrier rack front and rear fenders
Lights: Integrated front and rear lights
